Jansen Display
Double sided Digital totem
Product Code:
Technical specification of product Double sided Digital totem
Technical | |
Product width (mm) | 1100 | 1350 | 789 | 913 |
Product height (mm) | 2020 | 2120 | 2220 | 2500 |
Product depth (mm) | 1200 | 700 | 800 | 900 |
Net weight (kg) | 103 | 114 | 128 | 129.4 | 141 | 147 | 182.8 | 238 |
Total weight (kg) | 111 | 122 | 137.4 | 138 | 151 | 155 | 192.8 | 248 |
Doors number of locks | 0 |
-

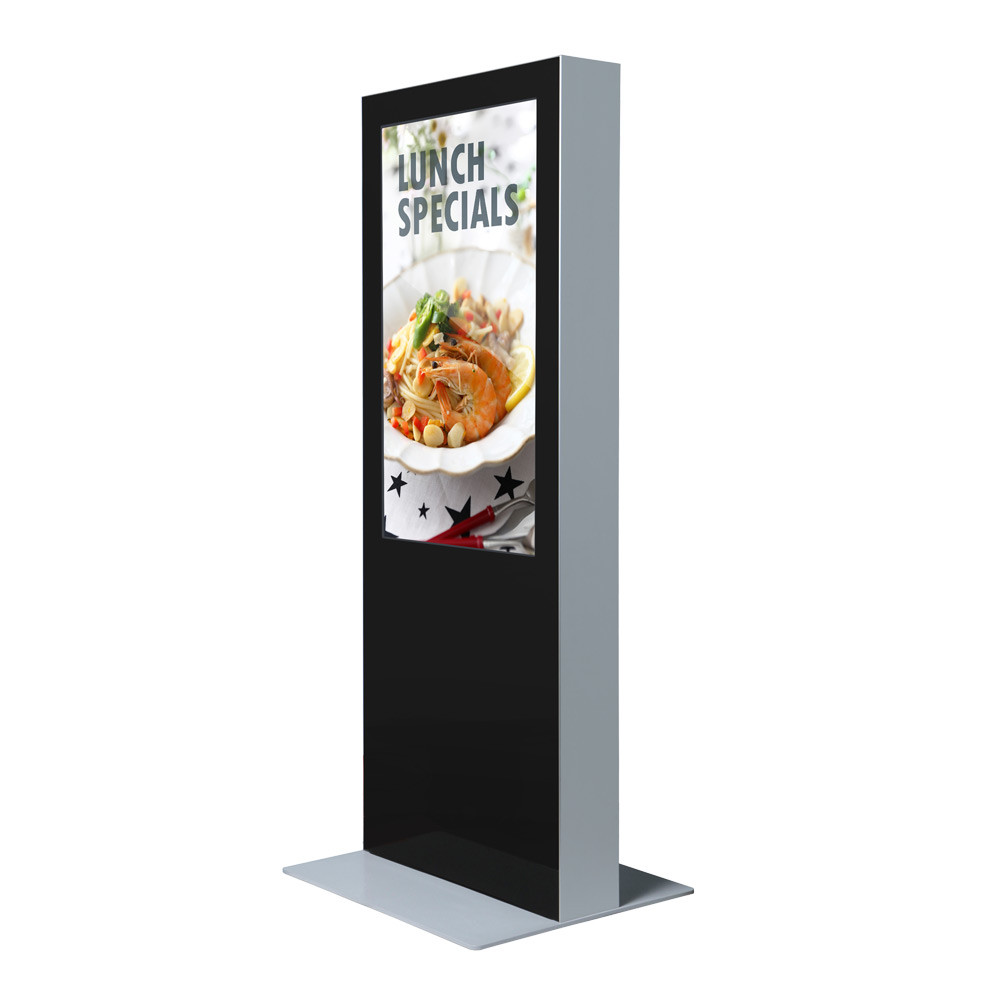

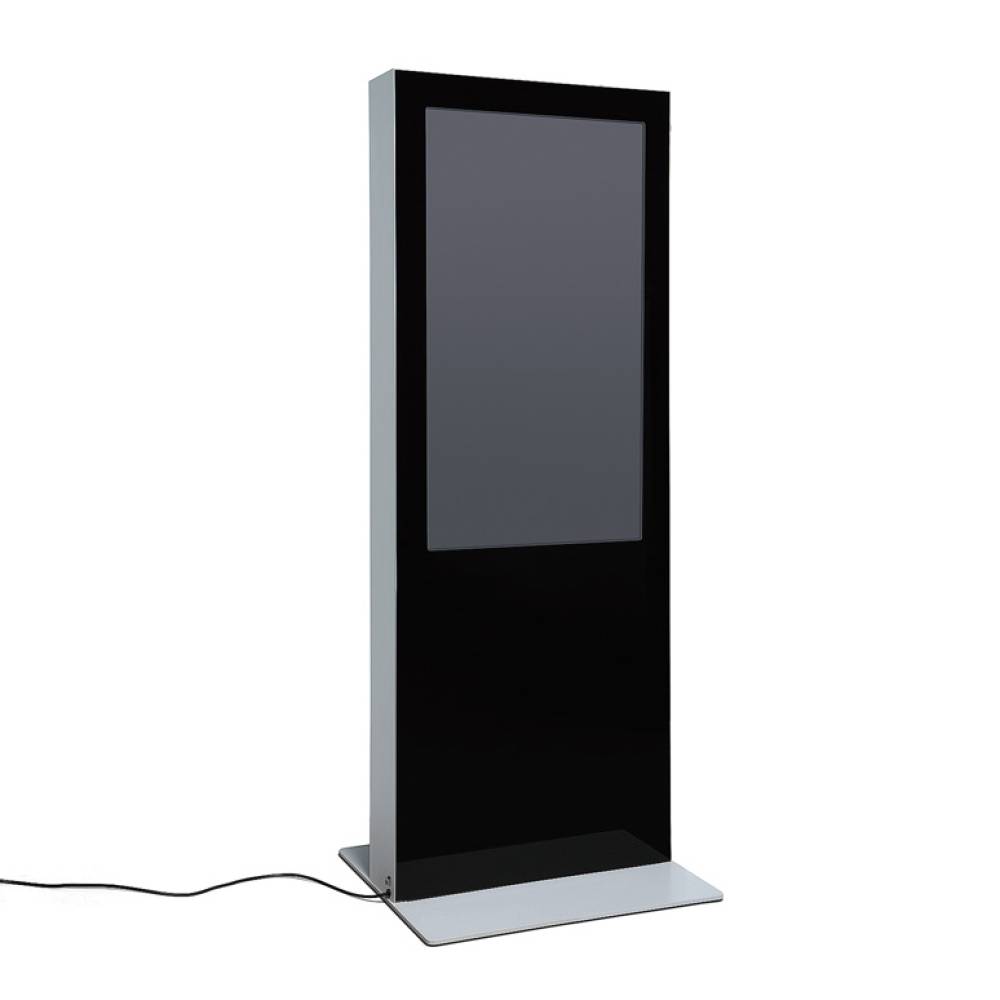

- Freestanding lockable secure totem enclosure for 22" to 85" screens
- Double sided with glass panels to both sides with 1 being removable
- Ceramic painted 4mm toughened glass in black finish as standard

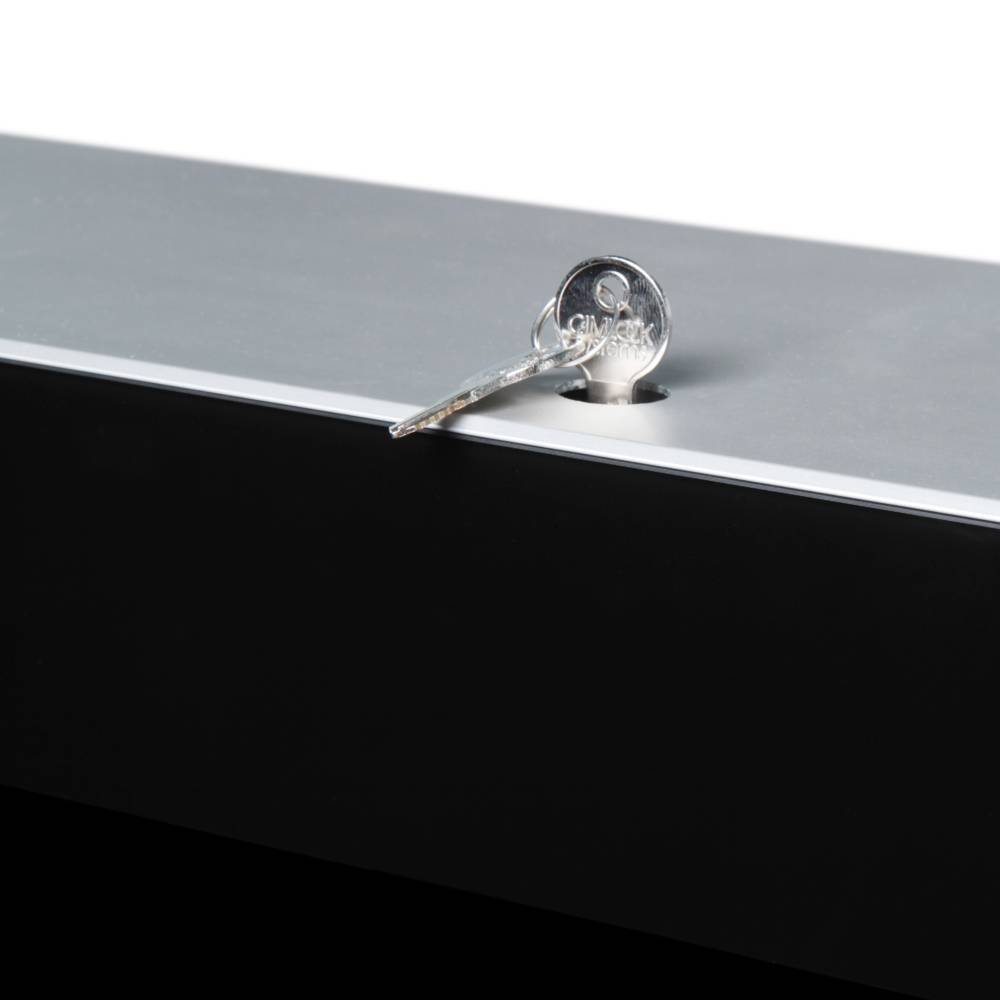

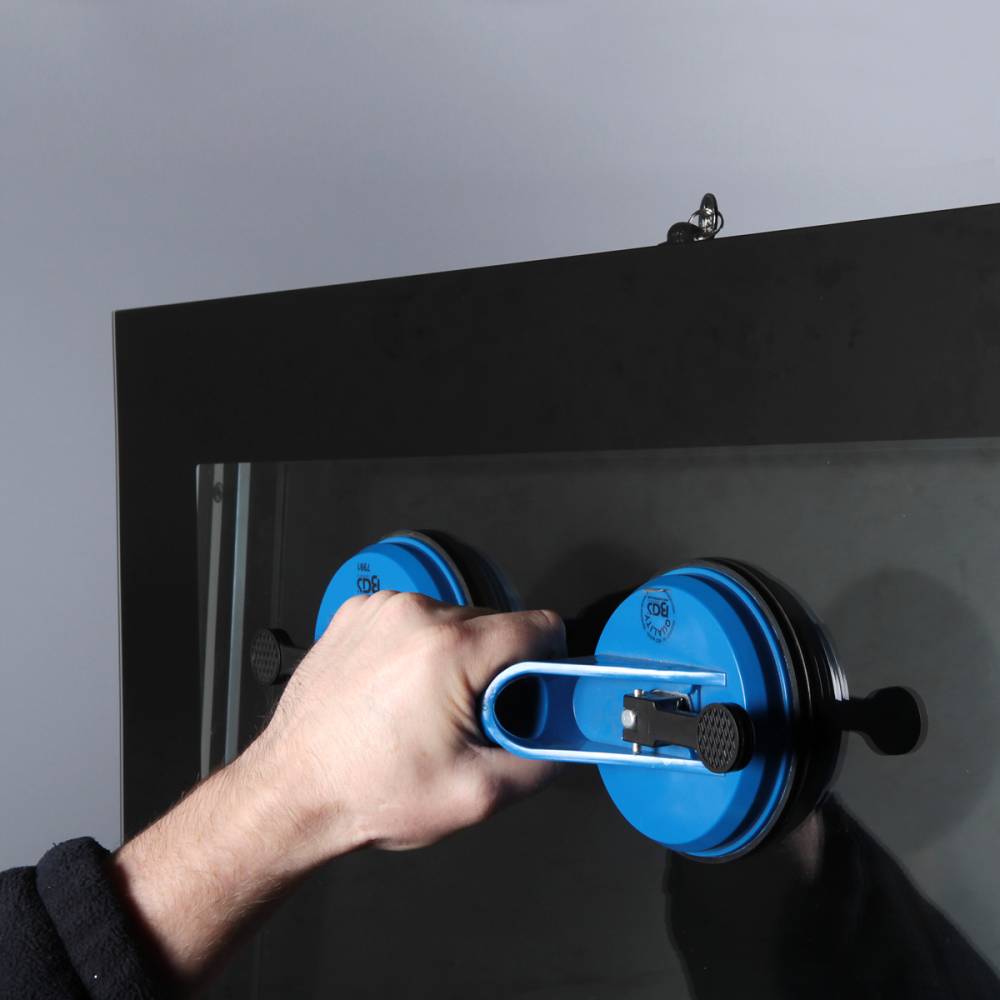

- Lift out lockable glass panel to one side for accessibility and installation
- Universal screen frame with micro adjustment and security fixing method
- 10mm thick silver powder coated steel base - with option for drilled holes
- Internal fan cooling system for hot environments up to 40 degrees Celcius

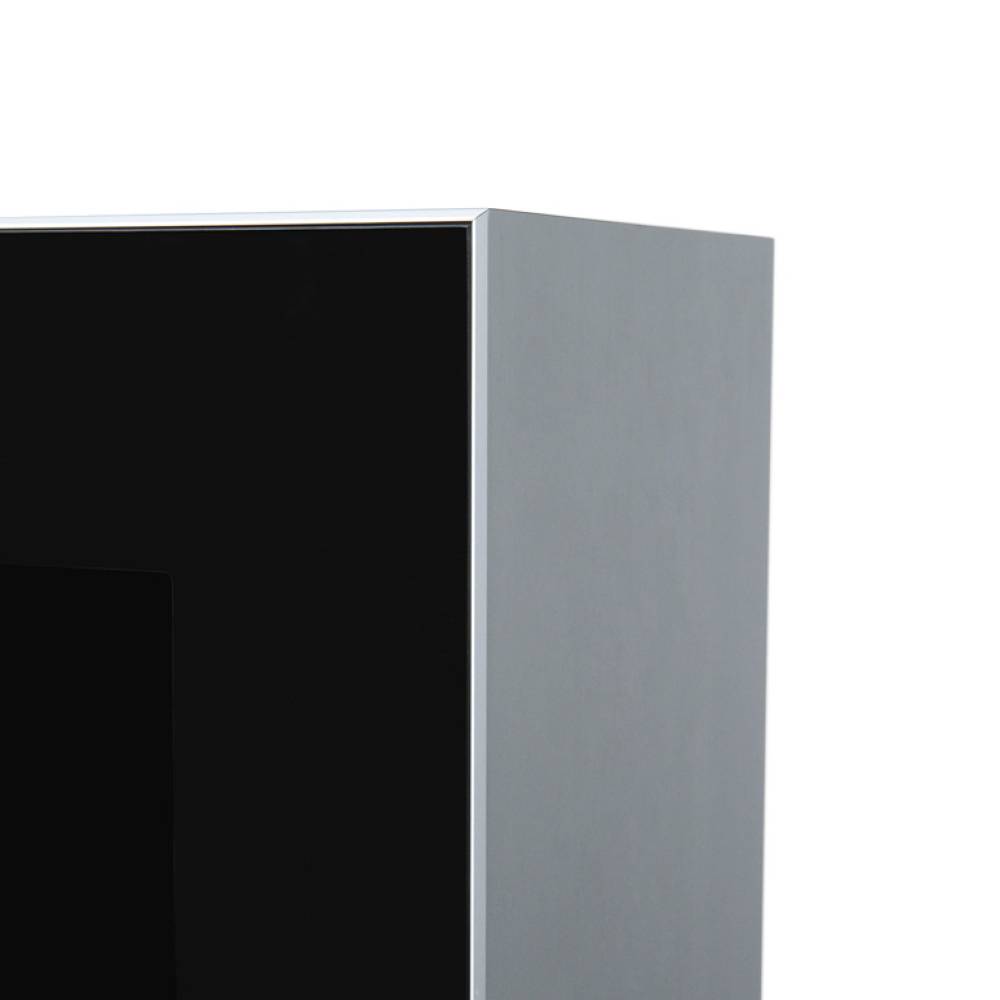

- Silver anodised alumimum finish outer frame profile for premium aesthetics
- 240v Power supply cable with pre-installed 3 pin plug sockets for hardwareÂ
- Ethernet RJ-45 socket with network connector cable included as standard
- Suitable for a range of screens from 22" to 85" including Samsung & Philips
- Options with touch foil, corporate branding and other RAL colours available
The product is no longer on offer
