Jansen Display
TriBoard
Product Code:
Technical specification of product TriBoard
Technical | |
Version | Single or Double-sided use | Single sided use |
Product width (mm) | 717 | 744 | 824 | 850 | 991 |
Product height (mm) | 1807 | 1810 |
Product depth (mm) | 621 | 645 | 714 | 736 | 858 |
Packaging unit width (mm) | 660 | 680 | 757 | 785 | 930 |
Packaging unit height (mm) | 135 | 140 | 150 |
Packaging unit length (mm) | 1815 | 1820 | 1830 |
Packaging unit | 1 |
Palette number of pieces | 0 | 5 | 8 |
Net weight (kg) | 10.93 | 17.39 | 21.08 | 21.9 | 27.06 |
Total weight (kg) | 10.93 | 20.69 | 21.9 | 24.52 | 31.12 |
Weather-proof | No | Yes |
Corners type | Rounded |
Wattage | 0 |
Colour | Silver |
Material | Aluminum / Metal / Plastic | Aluminum / Plastic PP / Metal |
Own brands possibility | Yes |
Fixation | Screws |
Intended for | Poster |
Installation | Freestanding |
Visible size (mm) | 569 x 816 | 675 x 975 |
Front panel | Antireflex 0,5 mm |
Rear panel | Metal back |
-

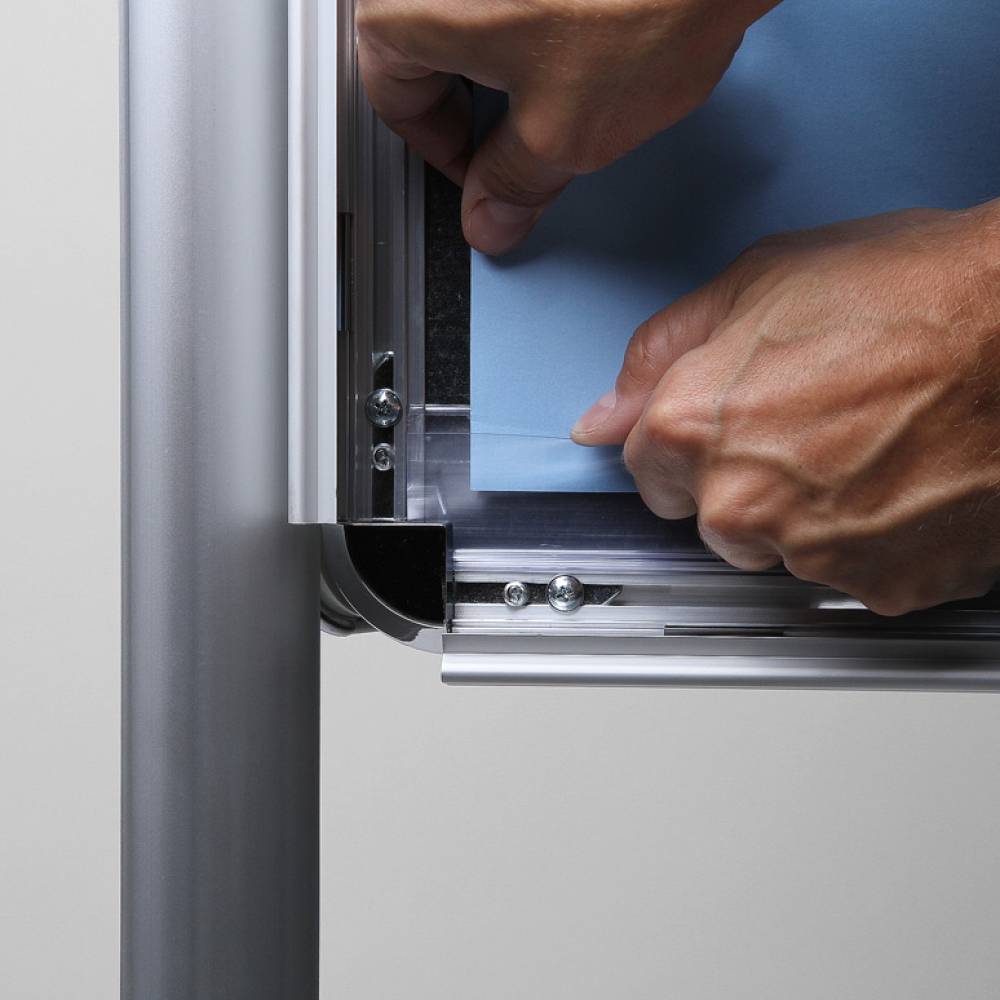

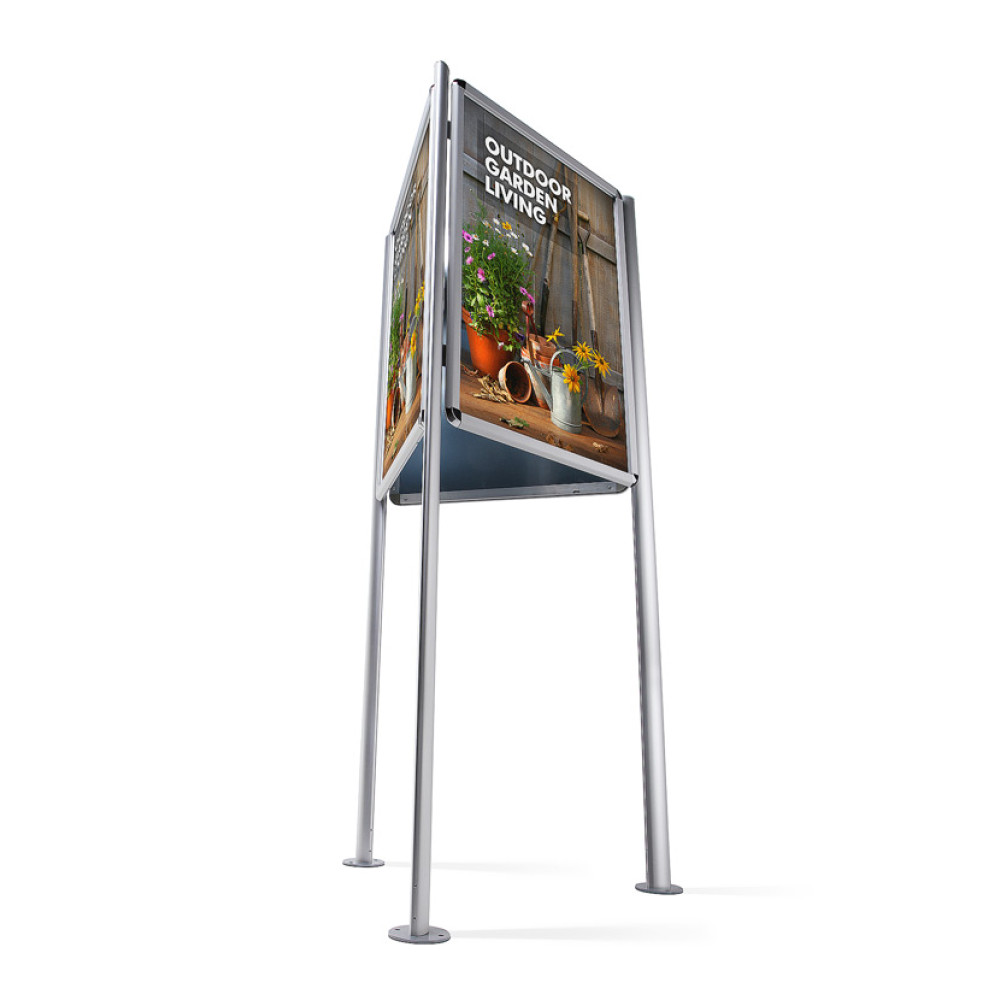

- 3 sided poster display stand with 32mm snap frames to each face

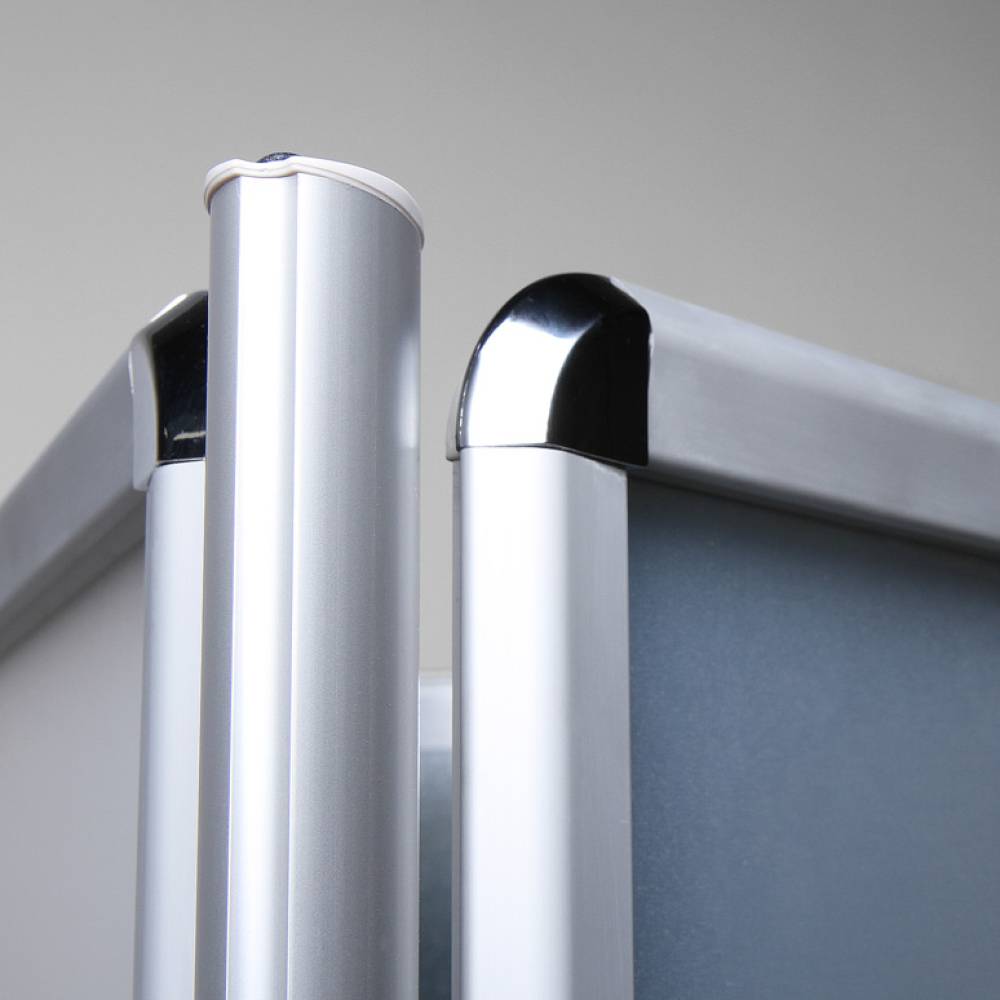

- Stable construction, aluminium legs, non corrosive metal back panels

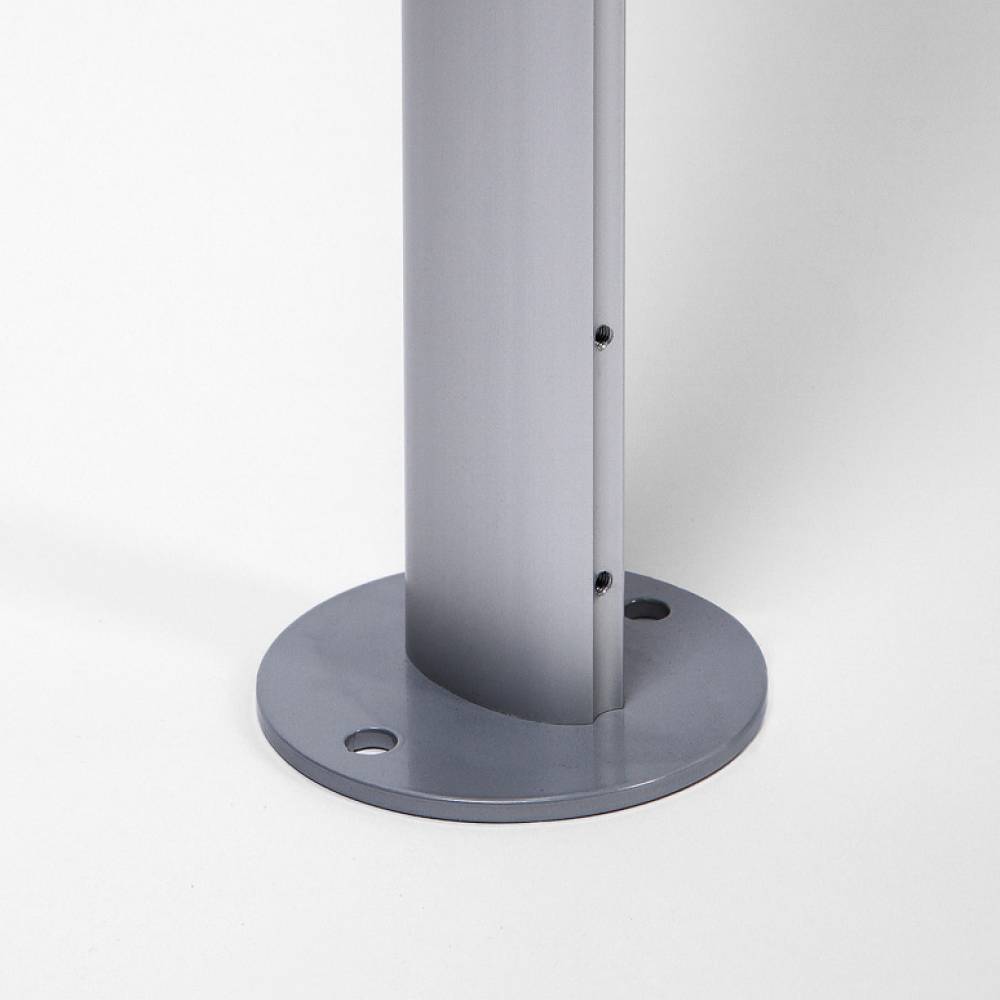

- Drill holes to the base plates to allow for permanent fixing if required
- Available for A1, 70x100cm and A0 poster sizes as standard
- Snap frames have weather rated poster foils and water outflow holes
- UV-stable antiglare poster foils protect the posters from fading
- Standard finish silver anodised. Standard RAL colours on request
